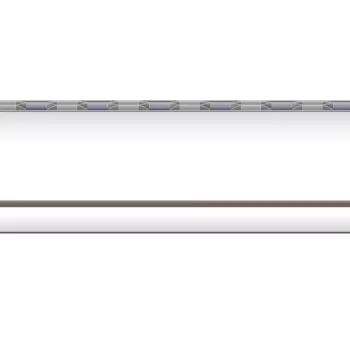

Panasonic 1 Ton 5 Star Split Air Conditioner (CS/CU-AU12ZKY5 )

Delivery available in Kannur & Kasaragod districts Only

Type Cooling Only
Tonnage Class (TR) 1.0
Brand Panasonic
Model [50Hz] CS/CU-AU12ZKY5
Cooling Capacity Standard [Min. – Max.] (Btu/h) 11942 [5374 – 13140]
Cooling Capacity Standard [Min. – Max.] (W) 3500 [1575 – 3850]
Heating Capacity Standard [Min. – Max.] (Btu/h) –
Heating Capacity Standard [Min. – Max.] (W) –
ISEER 5.10
Annual Power Consumption (kWh) 531.41
Star Rating (★) 5★
Electrical Data Voltage (V-AC) 230
Phase (Φ) Single Phase
Running Current (A) 4.1
Power Input, Standard Cooling [Min. – Max.] (W) 900 [280 – 1215]
Power Input, Standard Heating [Min. – Max.] (W) –
Moisture Removal Rate (l/h) 1.0
Moisture Removal Rate (Pt/h) 2.1
Air Circulation (Indoor/Hi) (mᵌ/min) 13.5
Air Circulation (Indoor/Hi) (ftᵌ/min) 477
Dimensions of the Indoor Unit Length (L) (cm) 87.0
Breadth (B) (cm) 23.6
Height (H) (cm) 29.6

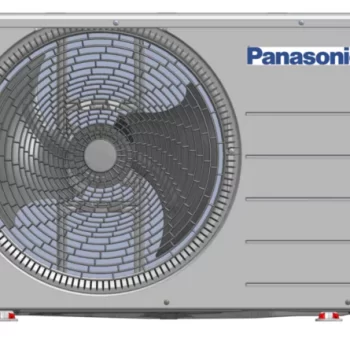

Dimensions of the Outdoor Unit Length (L) (cm) 78.0
Breadth (B) (cm) 28.8
Height (H) (cm) 54.2
Noise Level Indoor (H/L) [dB-A] 43/38
Outdoor [dB-A] 53
Net Weight IDU [ODU] (kg) 10 [25]
IDU [ODU] (lb) 22 [55.1]
Gross Weight IDU [ODU] (kg) 11 [27.5]
IDU [ODU] (lb) 24.2 [60.6]
Refrigerant R-32
Operating Temp. Range (℃) 16 ~ 52
Operating Volt. Range (V) 100 – 290
Refrigerant Pipe Diameter Liquid Side (cm) Ø0.635
Gas Side (cm) Ø0.952
Pipe Extension Chargeless Pipe Length * (m) 7.5
Maximum Pipe Length * (m) 10
Maximum Elevation Length * (m) 5
Additional Refrigerant Gas * (g/m) 10
Power Supply Source Indoor
